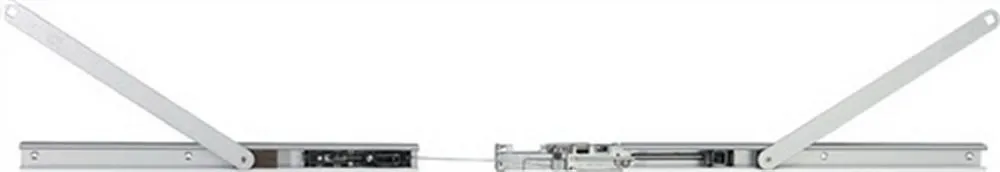

According to EN 1158. When the doors are open, the wing remains in its waiting position until the standing wing is closed and releases the aisle wing via the closing sequence control. Mechanical locking unit can be retrofitted for both door leafs, but not allowed on smoke and fire protection doors. For 2-leaf stop doors. With closing size 2-4: , max. Wing weight approx. 130 kg, wing widths min. 1300 mm - max. 2200 mm, standing wing at least 540 mm, for door leaf thicknesses from 40 mm, with closer size 3-6: max. Wing weight approx. 180 kg, blade widths min. 1300 mm - max. 2800 mm, standing wing at least 540 mm, for door leaf thicknesses from 50 mm, plus space required for floor wing lock.

• Is Discontinued By Manufacturer ‏ : ‎ No
• Product Dimensions ‏ : ‎ 25.2 x 4.53 x 1.57 inches; 4.31 Pounds
• Date First Available ‏ : ‎ April 11, 2015
• Manufacturer ‏ : ‎ GEZE
