- Linear Guide GBX heavy-duty sliding table, brand new and high-quality, meticulously crafted
- 25kg (within 300mm stroke), each additional 100 effective stroke will increase the weight by 0.4kg.
- All-metal high-precision cutting machine cutting tool, 2005/2010 ball screw accuracy is as high as -0.05mm.
- The installation instructions are enclosed in the package, please refer to the installation instructions for specific steps
- Modern style design, using high-rigid aerospace material shell, 90-wide fully enclosed sliding table module, dustproof.
Product Description:
Product Name: Heavy sliding table module
Product Type：Sliding table
Product Material: High-steel aerospace material shell
Product Color：as the picture shows

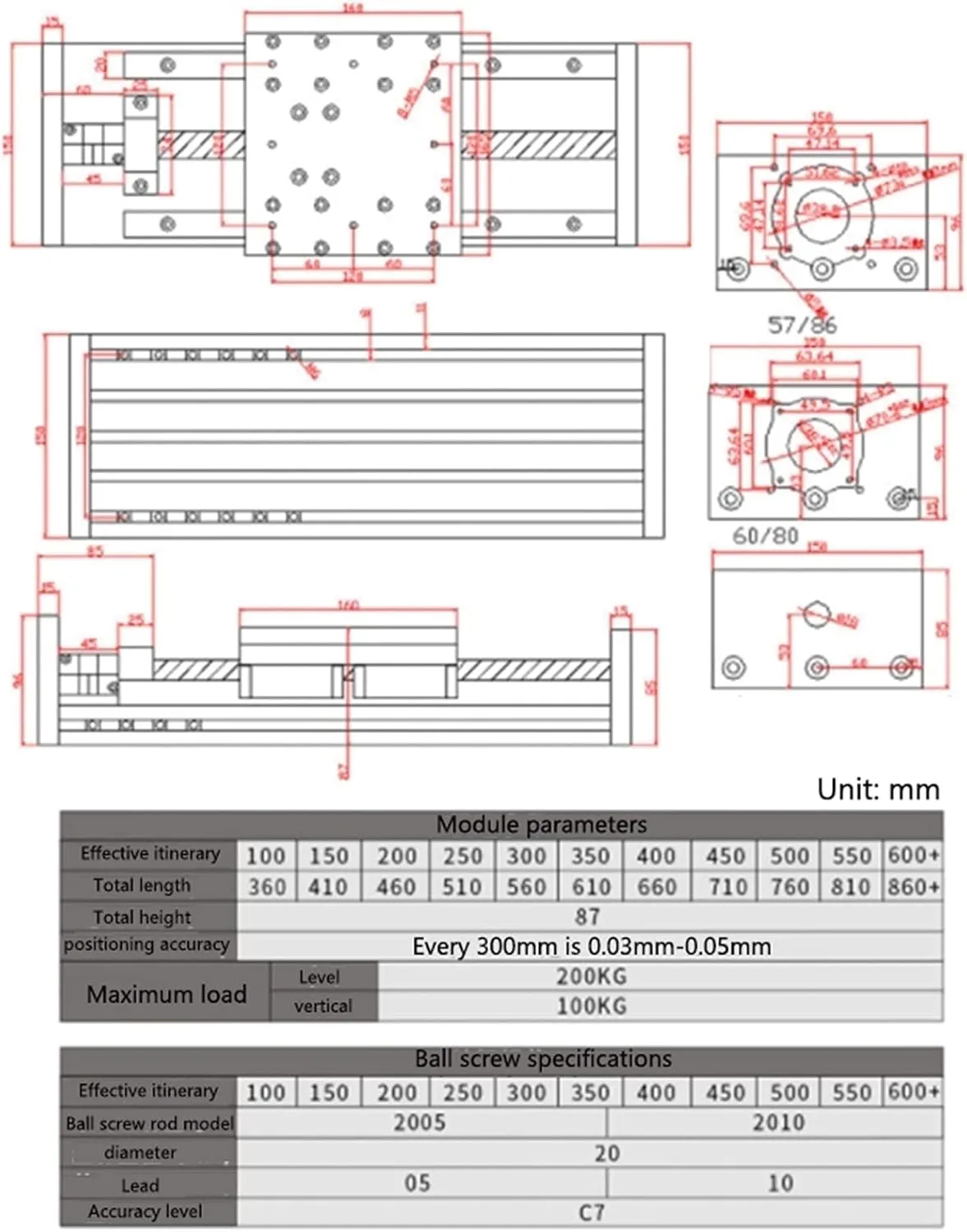

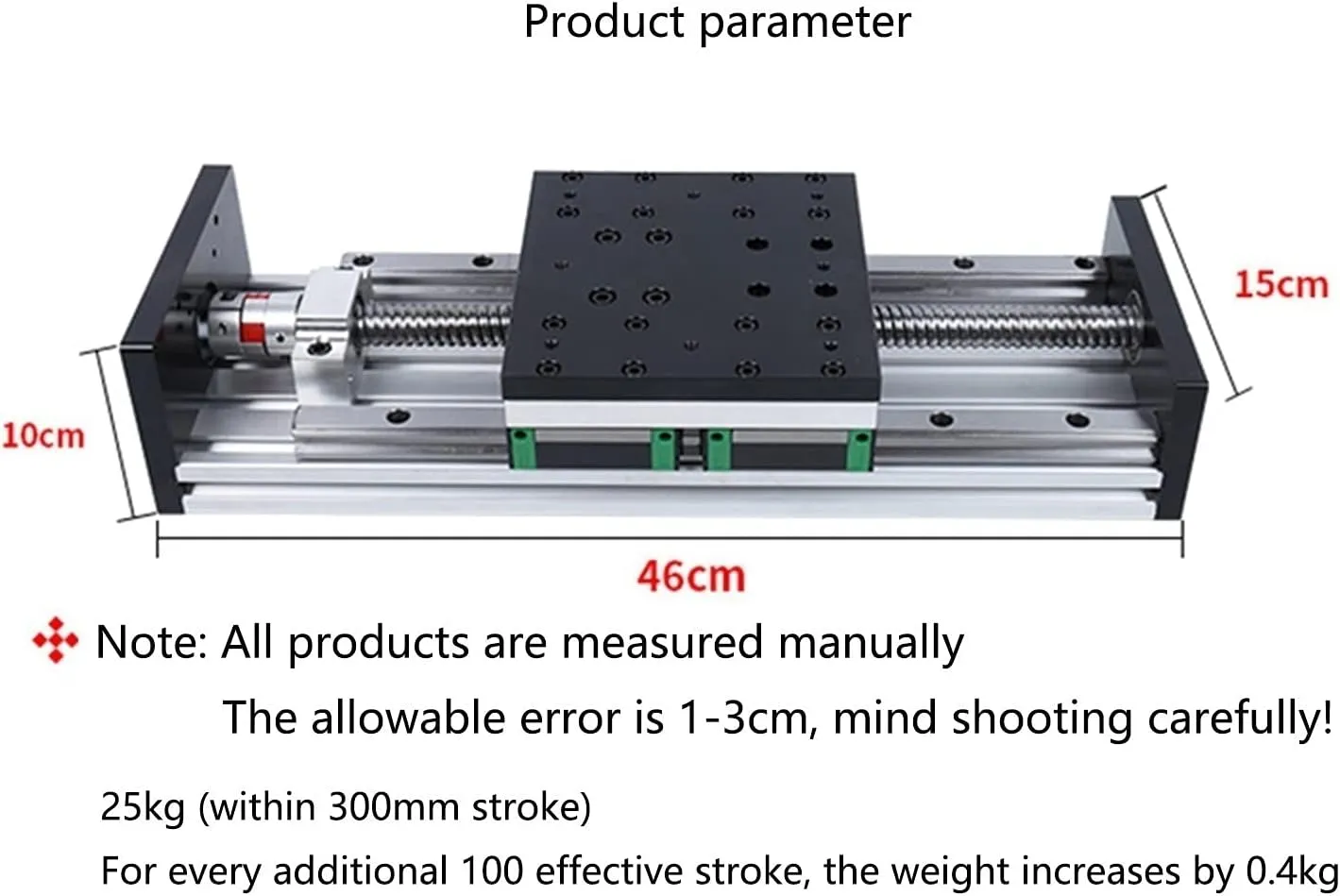

Product Size:46×15×10cm（The specific size details are shown in the figure）
Ball screw accuracy: -0.05
Ball screw diameter/lead: 20 diameter lead.05.10
Model: 4GBX2005/2010-100 4GBX2005/2010-200 4GBX2005/2010-300 4GBX2005/2010-400 4GBX2005/2010-500 4GBX2005/2010-600 4GBX2005/2010-700 4GBX2005/2010-800 4GBX2005/2010-900 4GBX2005/2010 -1000 4GBX2005/2010-1100 4GBX2005/2010-1200 4GBX2005/2010-1300 4GBX2005/2010-1400 4GBX2005/2010-1500 86 Stepper motor 2.5NM 86 Stepper motor 3NM 86 Stepper motor 4.5NM 86 Stepper motor 7NM 86 Stepper motor 10NM 86 Stepper motor 12NM
Product Quantity: 1pcs
Product Apply to:High-precision cutting machine cutting process

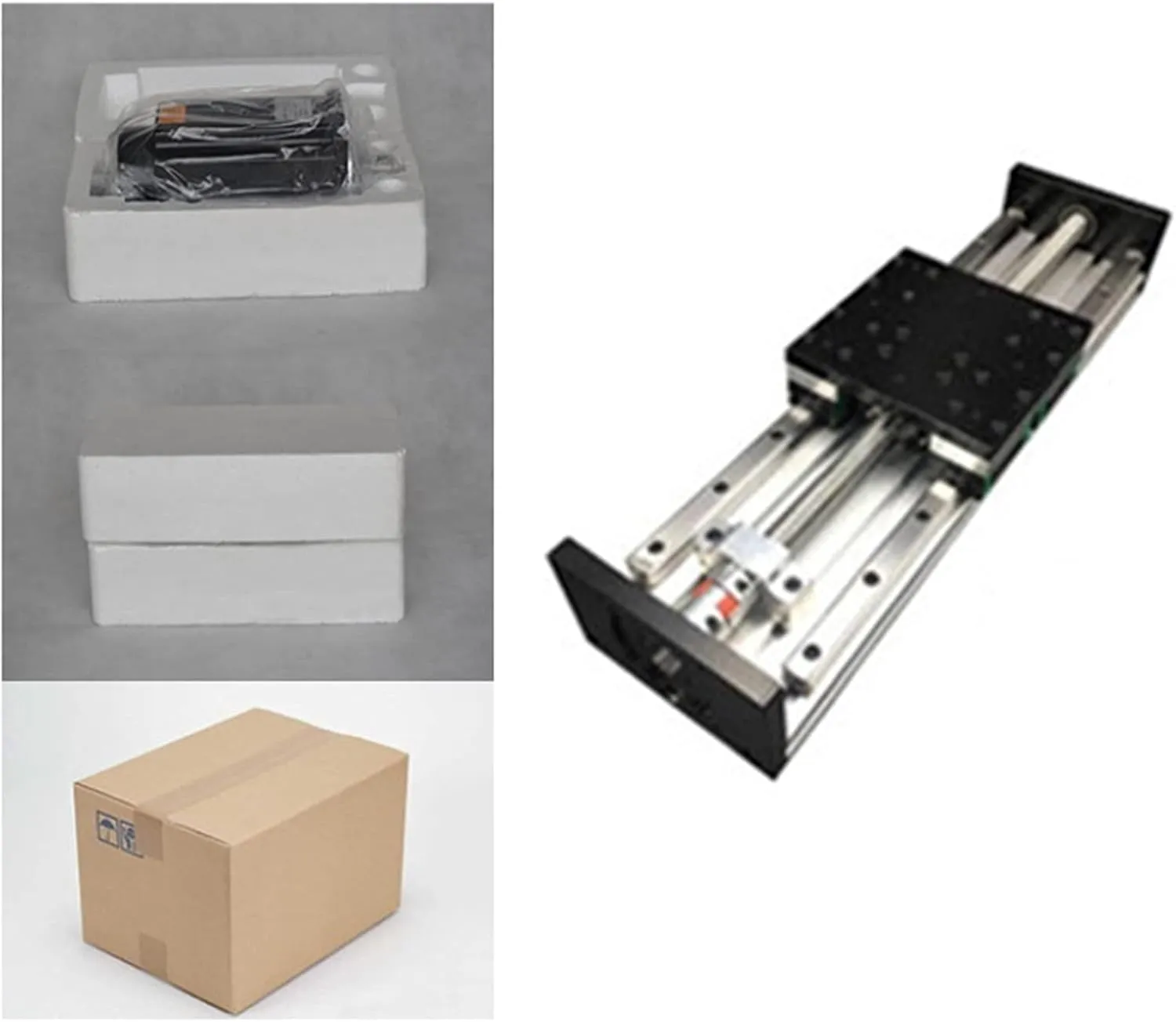

Package Includes:
1 x Heavy sliding table module
Only the above package content, other products are not included.
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 0.5-2cm.
