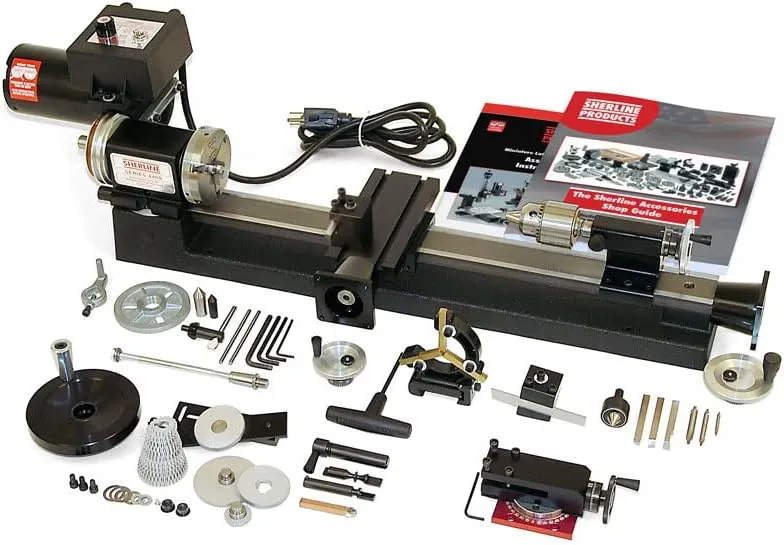

4400C-CNC CNC-Ready Package Includes:

Model 4400 3.5″ x 17″ lathe and standard accessories PLUS:
1040 3.1″ 3-jaw self-centering chuck
1069 3/8″ tailstock drill chuck w/ key, #0 Morse arbor, #1 Morse arbor with drawbolt
1074 Steady rest
1191 Live Center
1270 (1280 metric) Compound Slide
3002 Cutoff Tool and Holder 3007 3-pc 1/4″ HSS Cutting Tool Set (LH, RH, Boring)
3020 5/32″ T-driver
3021 3-pc Center Drill Set
5327 Sherline Accessories Shop Guide Book (224 pages, B/W)
3100 Thread Cutting Attachment


Standard equipment for the model 4400-CNC (4410 metric) lathe includes:
A powerful 90V DC motor with electronic speed controller
2.75″ (70mm) x 6.0″ (152mm) crosslide
24″ (610mm) steel bed that has 17″ (431mm) between centers
The handwheels are included and can be mounted to the end of the stepper motors to maintain manual control when needed.*
2.5″ (63mm) resettable “zero” handwheel for the leadscrew, one 2″ (51mm) resettable “zero” handwheels for the crosslide feed screw, and a 2″ (51mm) resettable “zero” handwheel on the tailstock. Each handwheel has laser engraved aluminum handwheel collars

*NOTE: CNC-ready machines cannot be operated manually until stepper motors are installed.
Rocker tool post (P/N 3057) substituted for the standard tool post used on the shortbed lathes
Pulleys, drive belt, faceplate, lathe dog, two dead centers, three hexagonal keys, tool post, sharpened high-speed steel cutting tool, eight-foot three-wire power cord, and instruction manual
